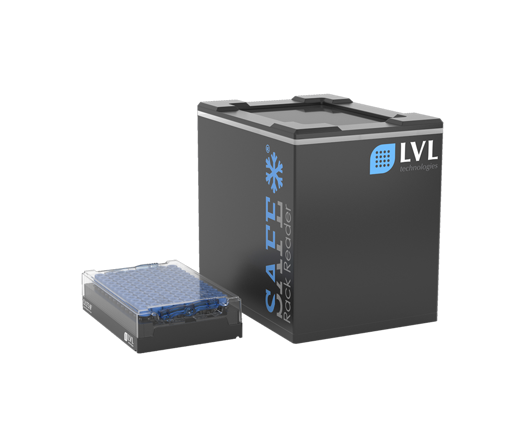

LVL fully automated SAFE® Tube and Tube Rack reader

Supplier LVL technologies

Available

Scans single tubes
As well as racks, single tubes with 2D codes can also be scanned by placing the code anywhere on the reading window.

Scans SBS format sample racks
Decodes any 12, 24, 48, 96 or 384 format well racks without any configuration in less than a second!

Power supply
No additional cable required - connect your scanner to your laptop via USB cable and off you go!

The SAFE® Tube und Tube Rack READER reads 2D codes from SAFE® Tubes and all other common 2D tubes in standardized SBS format in less than a second.

Automatic Rack Detection: When a rack is placed on the scanner, built in rack sensors will detect it automatically. Decoding begins when a rack has been detected requiring no further action from the user.
Dynamic A1 Positioning: Built in sensors will detect the A1 position of the rack and adjust the A1 position accordingly.
Smart Signal Lighting System: Fully confi gurable RGB LED‘s indicate the state of the current rack being scanned. E. g red can be used to signify a missing tube.
Keyboard Wedge Functionality: The device acts as a keyboard. Simply connect it to an application and the characters belonging to a code will be sent there directly when it is scanned.
Cryoguard Technology: Cryoguard protects the scanner against frost and condensation when used with cold labware.
Multiple Export Options: CSV, JSON, PDF, XLS, XMS & TCP/IP data export options available.
No Mode Changes Required: Switch between different racks and tubes instan-taneously without the need for reconfi guration - software adjusts to optimal reading parameters.
LIMS Integration: Compatible with most available LIMS systems.
Robot/Integration Friendly: Easily set up the Reader with robotics and automation systems.
No license key required: Can be connected to an unlimited number of different PCs.
