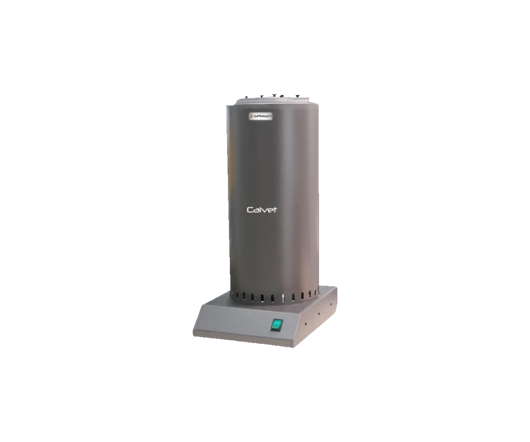

CALVET
CALVET calorimeters have their 3D sensors in common. They are made of a network of thermocouples surrounding the measurement cells. Basically, no heat is lost during measurements. CALVET is built like a calorimetry workstation, with many types of cells. Each brings the capability to achieve another type of measurement.
With time, CALVET has become a standard in numerous research and industrial fields. It may concern Process Safety, the characterization of Pharmaceutical, Food, Inorganic Materials or Polymers. Or even the characterization of materials for Energy and Environment like catalysts or sorbents.
Product Information
Highest Heat Measurement Accuracy, Calvet 3D sensor based on thermocouples with Joule effect calibration.
Isothermal or temperature scanning modes for increased flexibility and replication of real life conditions.
Convenient interchangeable crucibles and cells to perform even the most demanding experiments using one instrument: high pressure (up to 1000 bar) and high vacuum, pressure measurement and control, and mixing/stirring experiments.
External coupling capability designed to increase your research options including manometry, BET instrumentation, gas analyzers, humidity controllers and gas panels.
Product Specification
Temperature
Temperature range (°C)
Ambient to 300
Temperature accuracy (°C)
+/- 0.3*
Temperature precision (°C)
+/- 0.15*
Programmable temperature scanning rate (°C/min)
0.001 to 2
Heat & Heat Flow
Enthalpy accuracy (%)
+/- 0.4*
Calorimetric precision (%)
+/- 0.4*
RMS noise (μW)
1
Resolution (μW)
0.1
Dynamic Range (mW)
+/- 660; +/- 2 000
General
Cells volume (ml)
Up to 12.5 (standard cell)
Pressure measured and controlled (bar [psi])
350 [5,075]; 600 [8,700]; 1000 [14,600]
Weight (kg)
30
Dimensions (Height/Width/Depth)
60/25/31 cm
Power requirements
230V-50/60 Hz
