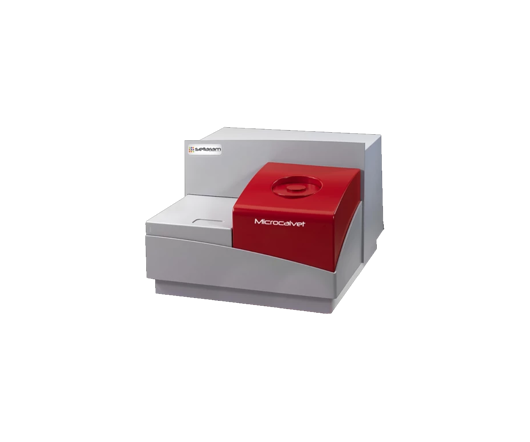

MICROCALVET

Highest heat measurement accuracy, Calvet 3D sensor based on Peltier elements with Joule effect calibration.

Modifiable temperature conditions for increased flexibility and replication of real life conditions between -45 and 120°C.

Convenient interchangeable crucibles and cells to perform even the most demanding experiments using one instrument: high pressure (up to 1000 bar) and high vacuum, pressure measurement and control, mixing/stirring experiments and combined high pressure and stirring experiments.

External coupling capability designed to increase your research options including manometry, BET instrumentation, gas analyzers, humidity controllers and gas panels.

Temperature
Temperature range (°C)
-45 to 120. Cooling under 0 °C requires the use of an auxiliary thermostat

Temperature accuracy (°C)
+/- 0.07*

Temperature precision (°C)
+/- 0.15*

Programmable temperature scanning rate (°C/min)
0.001 to 2

Heat & Heat Flow
Enthalpy accuracy (%)
+/- 0.4*

Calorimetric precision (%)
+/- 0.7*

RMS noise (μW)
0.08

Resolution (μW)
0.002; 0.02

Dynamic Range (mW)
+/- 20; +/- 200

General
Cells volume (ml)
Up to 1 (standard cell)

Pressure measured and controlled (bar [psi])
400 [5,800]; 1000 [14,600]

Weight (kg)
38

Dimensions (Height/Width/Depth)
40/53/58 cm

Power requirements
230V-50/60 Hz
