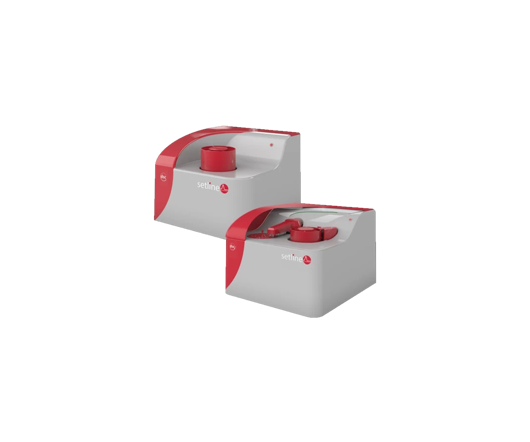

SETLINE® DSC/DSC+
Setline® Differential Scanning Calorimetry (DSC) offers easy, reliable temperature analysis from -170°C to 700°C. Its user-friendly design, robust construction, and DSC sensor technology ensure accurate measurements. Setline® is durable, cost-effective, and comes with technical support and intuitive Calisto software for data handling. The software is versatile, working with any Thermal Analysis instrument and brand, offering control, data acquisition, and data processing for Setline® DSC/DSC+.
Product Information
Easy to use with robust sensor technology ensuring quality, consistent and reliable data.
Available with high pressure crucibles up to 500 bar at 600°C.
Accessible instrument & sensor for easy, cost effective replacement.
Lower cost of ownership through simplified maintenance and a replacement parts guarantee.
Technical & application support for fast expert help with any questions.
Calisto 2.0 exclusive software for intuitive and powerful data handling.
Product Specification
Temperature
Temperature range (°C)
SETLINE® DSC -170 to 700
SETLINE® DSC+ -170** to 700
Programmable heating rate (°C/min)
SETLINE® DSC 0.01 to 100
SETLINE® DSC+ 0.01 to 100
Cooling time
12 min from 500°C to 100°C (air)
12 min from 25°C to -100°C (LN2)
5 min from 100°C to 0°C
(cryothermostat)
Accuracy
Enthalpy accuracy / precision *** (%)
+/- 0.8 / 2.5
Temperature accuracy / precision *** (°C)
+/- 0.30 / 0.50
DSC measurement range (mW)
+/- 6 000
Gas
Atmosphere
Inert gas, air (possible gas switch between 2 gases)
Gas flow range (ml/min)
10 to 100
General
Autosampler
SETLINE® DSC -
SETLINE® DSC+ 59 positions (samples or references)
Dimensions (Heigh - Width - Depth mm)
SETLINE® DSC 320 - 380 - 500
SETLINE® DSC+ 365 - 455 - 510
Power requirements
230V - 50/60Hz
