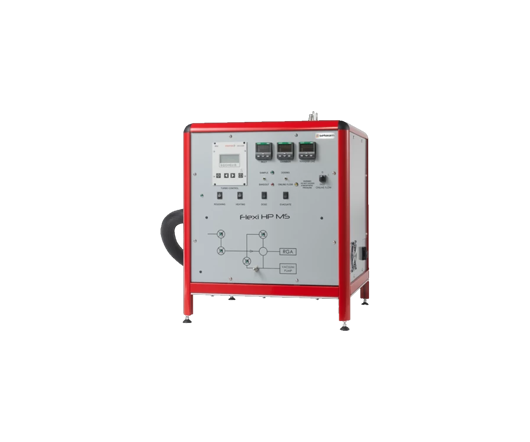

FLEXI HP MS
FLEXI HP MS is based on standard elements like a turbomolecular pump and a quadrupole mass spectrometer (MS). It also features a proprietary dosing system able to sample gas at high pressure. The sample is then depressurized and analyzed. It can also operate in the flow mode like any other mass spectrometer.
The fields of application of FLEXI HP MS are wide. It can analyze gases at-line in systems like reactors, laboratory instruments or climate chambers. So it can be useful in application fields like energy & environment. It includes hydrogen storage materials, catalysts characterization or oil & gas fields.
Product Information
Real-time analysis of gas composition at high pressure. It uses a quadrupole mass spectrometer including: a proprietary gas dosing manifold for gas sampling from vacuum to 200 bar, a standard gas flow mode for continuous gas sampling at atmospheric pressure.
Plug & play, easy settings, can be connected to third party instruments, reactors or to climate chambers. Virtually avoids gas condensation before detection using a temperature controlled transfer line. 6 modes available for enhanced control of scans and data.
Product Specification
Equipment
Residual Gas Analyzer
Quadrupole mass spectrometer
Filament
Unique long life, dual thoriated
Detector
Faraday cup
Electron Multiplier
Optional state-of-the-art, multi-channel, continuous-dynode electron multiplier (EM) for detection down to 1×10-14 mbar with increased longevity and stability
Mode of operation
Dose
Up to 200 bar, using an automated procedure with pneumatic valves
Flow
At atmospheric pressure, using a manual valve
Performance
Mass range
1 to 100 amu (200 and 300 amu ranges optional)
Resolution
<1 amu
Pressure range
Allows sampling over the entire vacuum to 200 bar operating pressure range
General
Size (W x D x H)
470 x 600 x 290 mm
Weight
40 kg
Gas supply
Air or inert gas for operation of pneumatic components - 50 psig
Power supply
110 / 230 V
50/60 Hz
