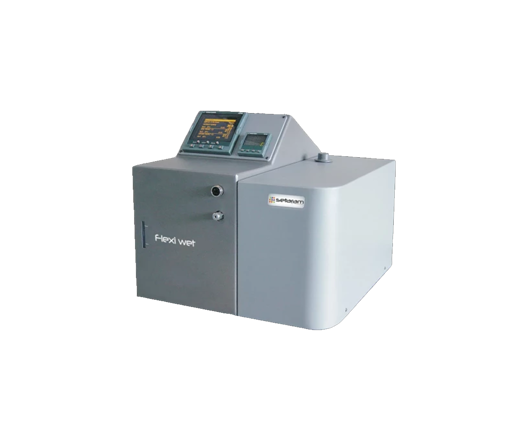

FLEXI WET
FLEXI WET is based on the simple principle of mixing a dry gas line and a wet gas line. It uses mass flow controllers, a temperature controlled mixing chamber, and a relative humidity probe. The outlet gas temperature, relative humidity, and flow rate are integrated in a control loop.
With FLEXI WET, you can check how humidity affects the properties of energetic materials, polymers, pharmaceuticals, food, building materials, thermal energy storage materials, metals and alloys etc. You can connect FLEXI WET to laboratory instruments or climate chambers.
Product Information
High versatility and accuracy wet gas generator for multiple laboratory or industrial applications; Accurate wet conditions control, from simple setpoint to sophisticated programming, operation with various types of gases
Plug & play, simplicity, easy settings; easily transportable, simple connection system to any laboratory instruments or climate chambers and simple and convenient user interface.
Product Specification
Performance (Gas)
Pre-calibrated for various gases
Air, helium, nitrogen, carbon dioxide, argon
Flow Rate FLEXI WET 50
3 to 50 ml/min
Flow Rate FLEXI WET 200
10 to 200 ml/min
Heated Transfer line
Ambient to 100°C
Performance (Humidity)
Gas humidity Ambient to 50 °C
0% RHa; 5-95% RH
Gas humidity 50 to 70 °C
0% RHa; 5-90% RH
Humidity profile generation
Constant RH, steps, ramps
Autonomy
> 1000 hoursb
Accuracy
+/- 0.8% RH
+/- 0.1 °C
Stability
+/- 0.3% RH
External RH probe
Optional
General
Size (W x D x H)
420 x 530 x 350 mm
Weight
22 kg
Power supply
110 / 230 V
50/60 Hz
